2-pipe snow guard bracket DC/DB tiles A and B type
DESIGNED FOR INSTALLING SNOW GUARD PIPES ON CLAY OR CONRETE TILES
Advantages
The bracket fits every type of tile.It may be installed on tiles with wave up to 59 mm height.
Aesthetics and high quality of the product.
Material

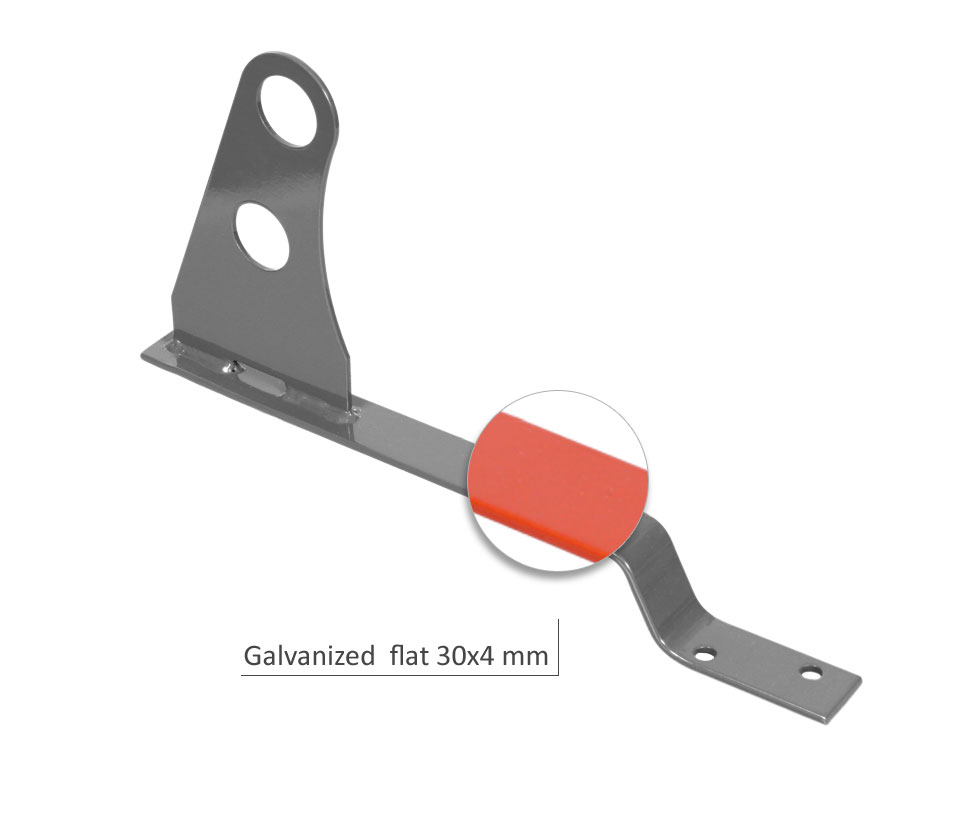

30 x 4 mm galvanized steel flat, powder painted.Resistance
Weather conditions, UV radiation.
Assembly
Snow guard pipes installation on the roof with a slope: - up to 40º - the distance between the the supports should not be exceed 600 mm, - more than 40º - the distance between the the supports should not be exceed 450 mm.
Parameters
| Type | Weight | Length | Package (pcs) | Product code |
|---|---|---|---|---|
| A | 0,70 | 350 | 10 | 022701...(RAL) |
| B | 0,69 | 325 | 10 | 022760...(RAL) |
