Snow stopper fence bracket DC/DB tiles A or B type
DESIGNED FOR INSTALLING SNOW STOPPER FENCE ON CLAY OR CONRETE TILES
Advantages
The basis fits to any kind of roof tiles.It may be installed on tiles with wave up to 59mm height.
Snap system for fast installation.
Material

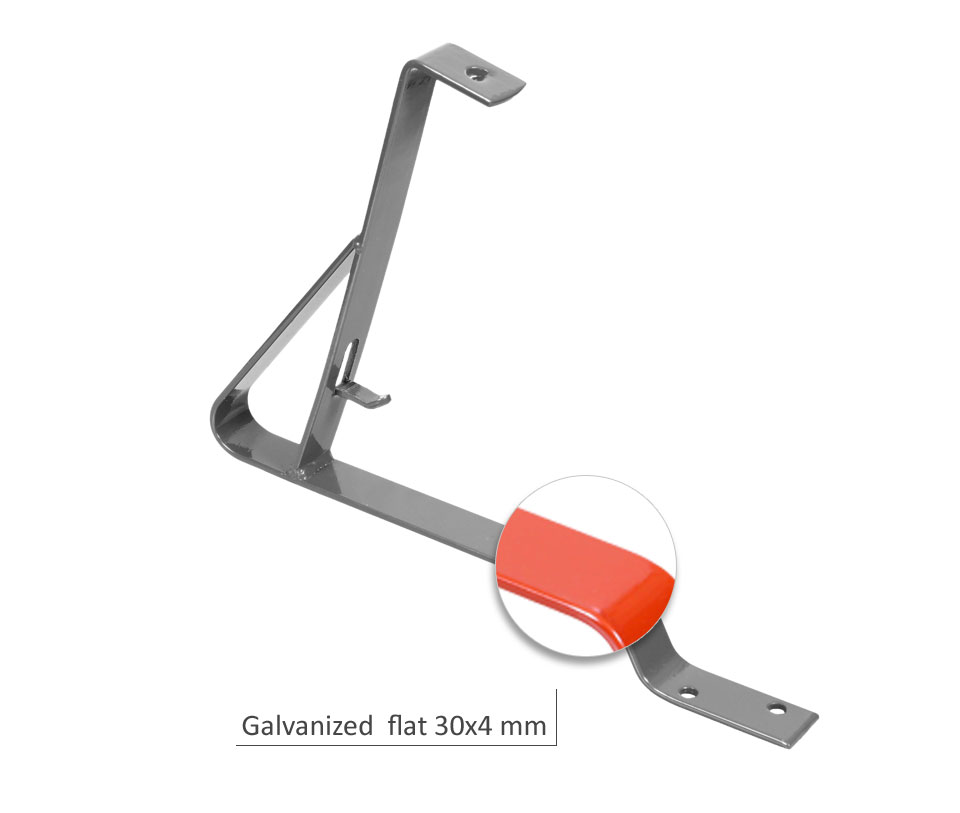

30 x 4 mm galvanized steel flat, powder painted.Resistance
Weather conditions, UV radiation.
Assembly
Snow guard pipes installation on the roof with a slope: - up to 40º - the distance between the the supports should not be exceed 600 mm, more than 40º - the distance between the the supports should not be exceed 450 mm. Type A - assembled to the counter Type B - assembled to the batten
Parameters
| Type | Coating | Weight | Package (pcs) | Product code |
|---|---|---|---|---|
| A | 350 | 0,90 | 10 | 020401...(RAL) |
| B | 325 | 0,86 | 10 | 020402...(RAL) |
