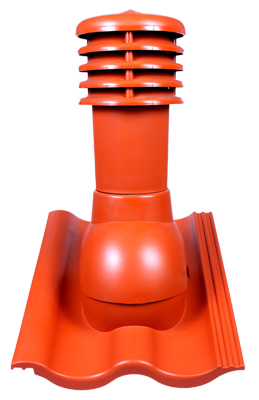

Ventilation chimney for concrete tiles

USED WITH CONCRETE TILES


Advantages

Gradient angle adjustable from 0º to 45º.
Better efficiency thanks to the annular construction of the chimney.
Material with improved resistance to scraching.
Aesthetics and high quality of the product.

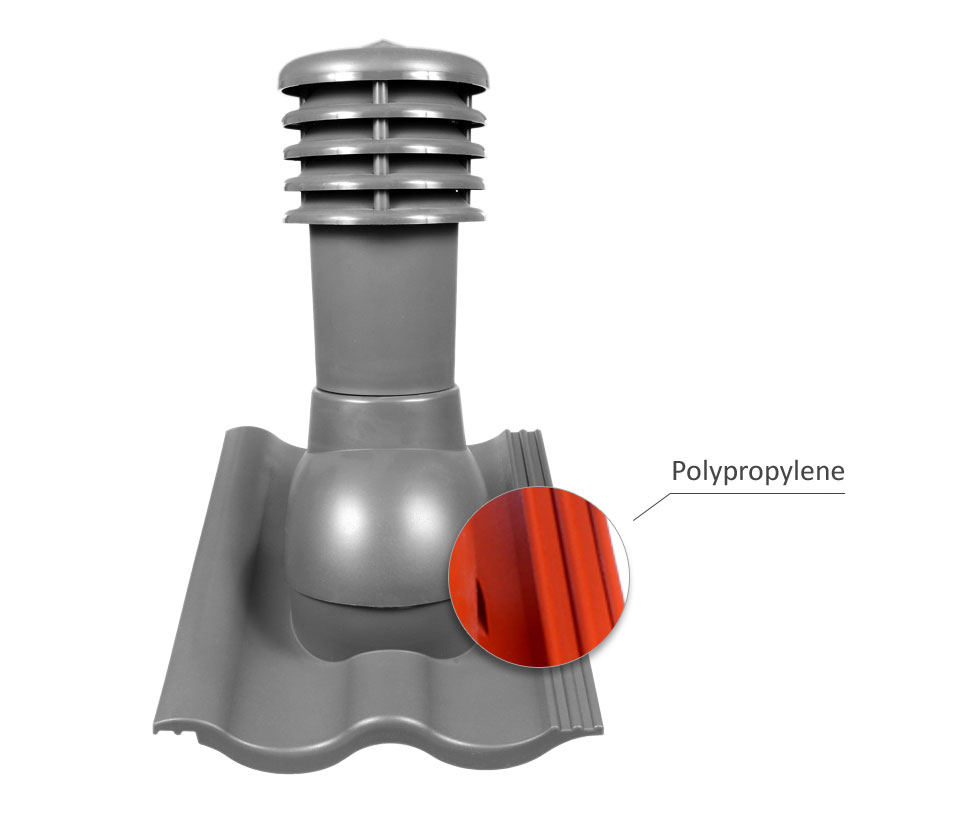

Material

Dyed polypropylene with UV stabilization.
Basis in the shape of tile.

Resistance

Weather conditions, UV radiation, aging processes.

Assembly

The same as the installation of the simple tiles.

See photo

- Kolory są dostosowane do dachówki. Przy zamówieniu prosimy podać producenta, model i kolor dachówki

Parameters

Type Diameter Package (pcs) Product code
Ventilation chimney NOT INSULATED A 110 1 KD-A11...(RAL)
Ventilation chimney INSULATED A 110 1 KD-AO11...(RAL)
Ventilation chimney NOT INSULATED A 150 1 KD-A15...(RAL)
Ventilation chimney INSULATED A 150 1 KD-AO15...(RAL)
Ventilation chimney NOT INSULATED B 110 1 KD-B11...(RAL)
Ventilation chimney INSULATED B 110 1 KD-BO11...(RAL)
Ventilation chimney NOT INSULATED B 150 1 KD-B15...(RAL)
Ventilation chimney INSULATED B 150 1 KD-BO15...(RAL)
Ventilation chimney NOT INSULATED C 110 1 KD-C11...(RAL)
Ventilation chimney INSULATED C 110 1 KD-CO11...(RAL)
Ventilation chimney NOT INSULATED C 150 1 KD-C15...(RAL)
Ventilation chimney INSULATED C 150 1 KD-CO15...(RAL)
Ventilation chimney NOT INSULATED D 110 1 KD-D11...(RAL)
Ventilation chimney INSULATED D 110 1 KD-DO11...(RAL)
Ventilation chimney NOT INSULATED D 150 1 KD-D15...(RAL)
Ventilation chimney INSULATED D 150 1 KD-DO15...(RAL)
Ventilation chimney NOT INSULATED E 110 1 KD-E11...(RAL)
Ventilation chimney INSULATED E 110 1 KD-EO11...(RAL)
Ventilation chimney NOT INSULATED E 150 1 KD-E15...(RAL)
Ventilation chimney INSULATED E 150 1 KD-EO15...(RAL)
Ventilation chimney NOT INSULATED G 110 1 KD-G11...(RAL)
Ventilation chimney INSULATED G 110 1 KD-GO11...(RAL)
Ventilation chimney NOT INSULATED G 150 1 KD-G15...(RAL)
Ventilation chimney INSULATED G 150 1 KD-GO15...(RAL)
AERIAL'S ADAPTER A - 1 PA-DA...(RAL)
AERIAL'S ADAPTER B - 1 PA-DB...(RAL)
AERIAL'S ADAPTER C - 1 PA-DC...(RAL)
AERIAL'S ADAPTER D - 1 PA-DD...(RAL)
AERIAL'S ADAPTER E - 1 PA-DE...(RAL)
AERIAL'S ADAPTER G - 1 PA-DG...(RAL)
